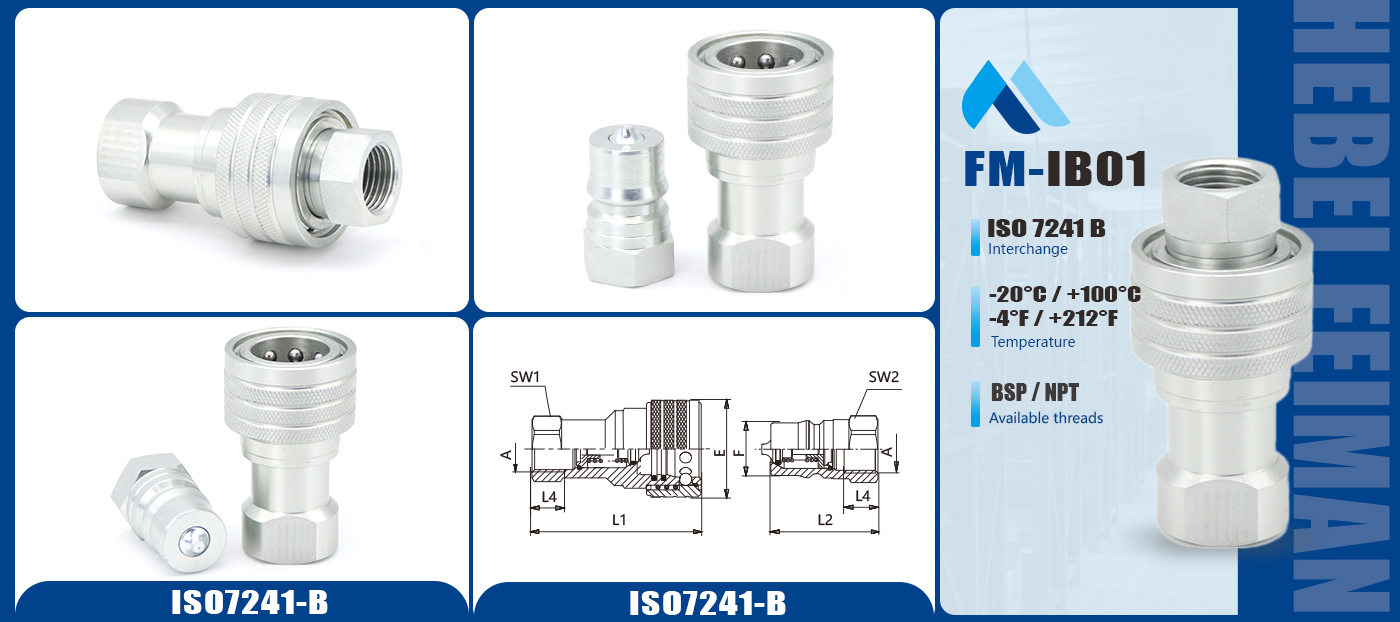

ISO7242-B quick coupling
IB-01
This product is suitable for a wide range of hydraulic applications. Their robustness makes them ideal for demanding applications in the semiconductor industry, pneumatic and hydraulic hand tools, food and bottling industry, marine, shipbuilding, offshore industry, pharmaceutical industry, transportation, hydroelectric power stations, etc.
Parker 60, DNP PBV, Faster HNV
Holmbury IB, Dixon H, Stucchi IRB
Eaton HK, Aeroquip FD45, Snap Tite 72
Voswinkel IB, Safeway S10, Tomco THK, Hansen HK
Parker 60, DNP PBV, Faster HNV
Holmbury IB, Dixon H, Stucchi IRB
Eaton HK, Aeroquip FD45, Snap Tite 72
Voswinkel IB, Safeway S10, Tomco THK, Hansen HK
Quantity
Material: Carbon steel Available Size: From 1/4’’-2’’
Available Thread: NPT, BSP Operating pressure: Up to 500 bar
Features:
1. Compliant with ISO7241-1B standard
2. A wide range of metals (brass, steel, and stainless steel) and sealing materials make them suitable for most fluids.
3. The Poppet valve allows a large flow
4. The locking ball system allows for quick connection and disconnection 5. Bidirectional flow
