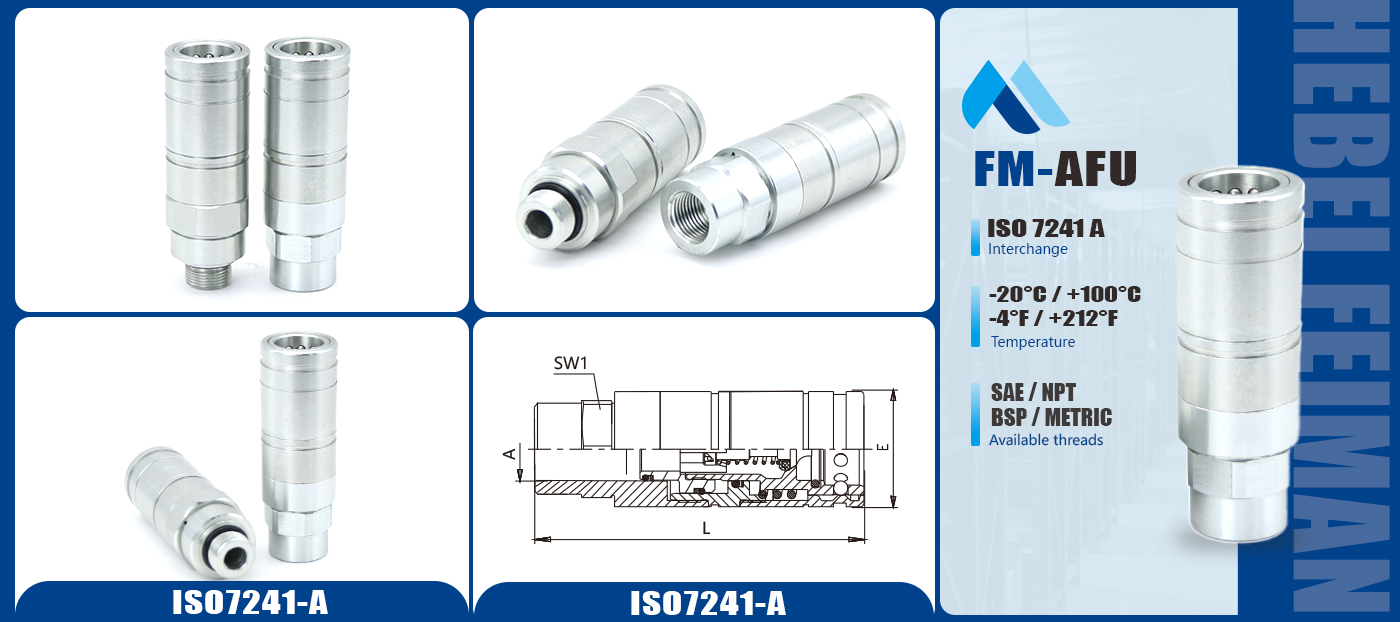

ISO7241-A quick coupling
AFU
It is primarily for agricultural industries, Mobile, Construction, etc.
Supplied in a wide range of threads: Metric (BSP), NPT threads inside, and metric outside with light or heavy type.
AFU is a series of quick couplings with a poppet sealing system that is interchangeable according to international standards.
Supplied in a wide range of threads: Metric (BSP), NPT threads inside, and metric outside with light or heavy type.
AFU is a series of quick couplings with a poppet sealing system that is interchangeable according to international standards.
Quantity
Material: Carbon steel Available Size: 1/2’’
Available Thread: NPT, BSP, METRIC, SAE Operating pressure: Up to 350 bar
Features:
- It can be connected with standard ISOA 1/2’’ male couplings.
- Can be connected with residual pressure in the line.
- Release mechanism protests coupling and hose from damage in the event of accidental separating force.
- ISO 7241, series A, made of carbon steel with a galvanizing surface treatment.
