ISO7241-A quick coupling
IA03
This product is widely used in various industrial connections, mainly for construction equipment, forest equipment, agricultural machinery, hydraulic tools, petroleum equipment, steel equipment, and other hydraulic applications.
Interchangeable with the following products:
PARKER 6600 series, FASTER ANV series, AEROQUIP 5600 series,
HANSEN HA15000 series, DNP PAV series, Holmbury IA series,
DIXON K series, Stucchi BIR series, Eaton 6500 series, Snap Tite 61 series,
Voswinkel IA series, Safeway S56 series, Tomco A5600 series.
Interchangeable with the following products:
PARKER 6600 series, FASTER ANV series, AEROQUIP 5600 series,
HANSEN HA15000 series, DNP PAV series, Holmbury IA series,
DIXON K series, Stucchi BIR series, Eaton 6500 series, Snap Tite 61 series,
Voswinkel IA series, Safeway S56 series, Tomco A5600 series.
Quantity

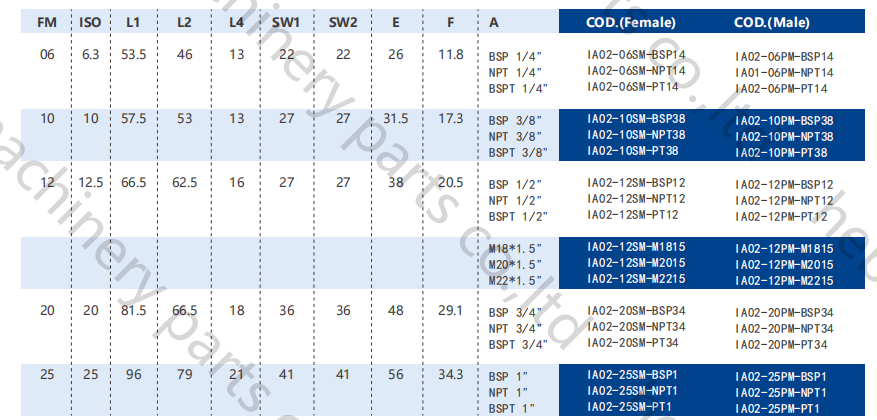

Material:Carbon steel Available Size: From 1/4’’-2’’
Available Thread: NPT, BSP, BSPT, SAE Operating pressure: Up to 350 bar
Features:
1. When the connector is disconnected, the valve core automatically closes to prevent leakage.
2. Bidirectional flow.
3. Poppet valves allow larger flow.
5. The locking ball system allows quick connection&disconnection.
6. This connector complies with ISO7241-A standards and is made of carbon steel with a galvanizing surface treatment.
