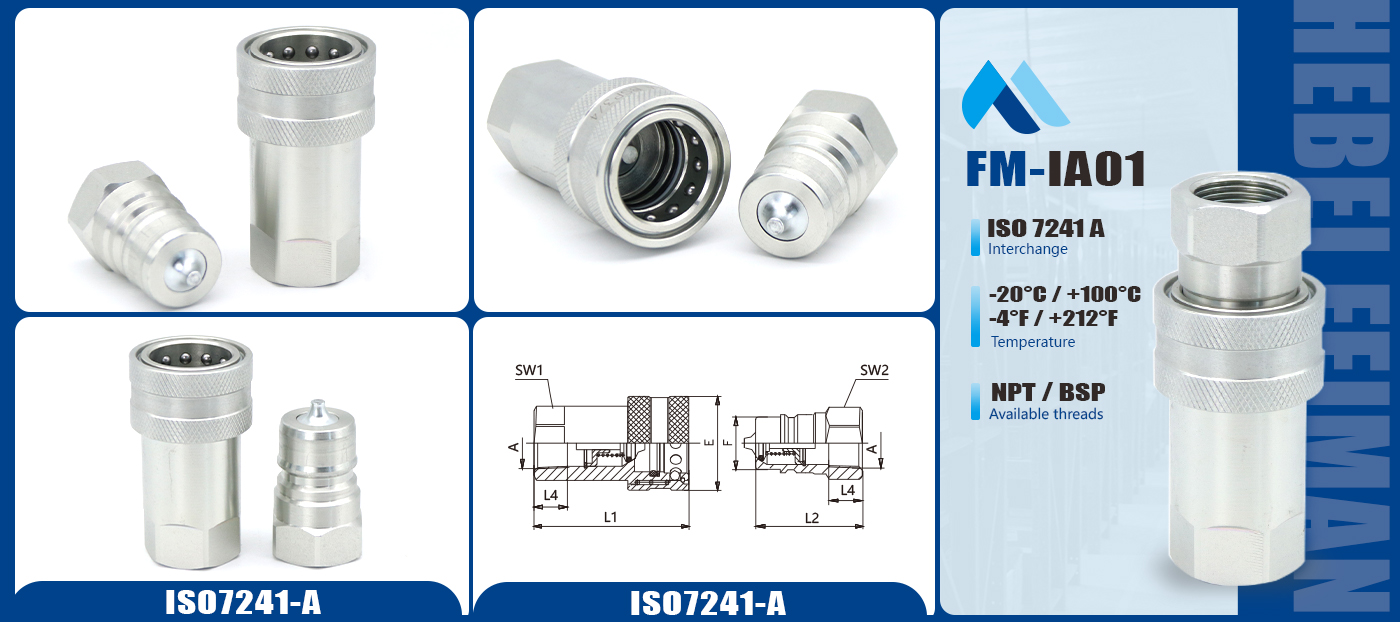

IS07241-A quick coupling for agricultural machine
Interchangeable with the following products:
PARKER 6600 series, FASTER ANV series, AEROQUIP 5600 series,
HANSEN HA15000 series, DNP PAV series, Holmbury IA series,
DIXON K series, Stucchi BIR series, Eaton 6500 series, Snap Tite 61 series,
Voswinkel IA series, Safeway S56 series, Tomco A5600 series.
Material: Carbon steel，cr3
Available Size: From 1/4’’-2’’
Available Thread: NPT, BSP
Operating pressure: Up to 350 bar
| FM | ISO | L1 | L2 | L4 | SW1 | SW2 | E | F | A | COD.(Female) | COD.(Male) | ||||||||||||
| 06 | 6.3 | 50 | 35.5 | 13 | 19 | 19 | 26 | 11.8 | BSP14"NPT14" | IA01-06SF-BSP14 IA01-06SF-NPT14 | IA01-06PF-BSP14 IA01-06PF-NPT14 | ||||||||||||
| 10 | 10 | 56 | 38 | 14 | 22 | 22 | 31.5 | 17.3 | BSP3/8"NPT3/8" | IA01-10SF-BSP38 IA01-10SF-NPT38 | IA01-10PF-BSP38 IA01-10PF-NPT38 | ||||||||||||
| 12 | 12.5 | 66 | 45 | 16 | 27 | 27 | 38.5 | 20.5 | BSP1/2"NPT1/2" | IA01-12SF-BSP12 IA01-12SF-NPT12 | IA01-12PF-BSP12 IA01-12PF-NPT12 | ||||||||||||
| 20 | 20 | 80 | 54.2 | 18 | 34 | 34 | 48 | 29.1 | BSP3/4"NPT3/4" | IA01-20SF-BSP34 IA01-20SF-NPT34 | IA01-20PF-BSP34 IA01-20PF-NPT34 | ||||||||||||
| 25 | 25 | 93 | 62.5 | 21 | 41 | 41 | 55 | 34.3 | BSP1" NPT1" | IA01-25SF-BSP1 IA01-25SF-NPT1 | IA01-25PF-BSP1 IA01-25PF-NPT1 | ||||||||||||
| 31 | 31.5 | 112 | 70 | 25 | 50 | 50 | 69 | 45 | BSP1-1/4"NPT1-1/4" | IA01-31SF-BSP114 IA01-31SF-NPT114 | IA01-31PF-BSP114 IA01-31PF-NPT114 | ||||||||||||
| 40 | 40 | 127.5 | 78 | 25.5 | 60 | 60 | 84 | 55 | BSP1-1/2"NPT1-1/2" | IA01-40SF-BSP112 IA01-40SF-NPT112 | IA01-40PF-BSP112 IA01-40PF-NPT112 | ||||||||||||
| 50 | 50 | 158 | 98 | 26 | 75 | 75 | 99 | 65 | BSP2"NPT2" | IA01-50SF-BSP2 IA01-50SF-NPT2 | IA01-50PF-BSP2 IA01-50PF-NPT2 | ||||||||||||
Features:
1. When the connector is disconnected, the valve core automatically closes to prevent leakage.
2.Bidirectional flow.
3.Poppet valves allow larger flow.
5. The locking ball system allows quick connection and disconnection.
6. This connector complies with ISO7241-A standards and is made of carbon steel with a galvanizing surface treatment.
Interchangeable with the following products:
PARKER 6600 series, FASTER ANV series, AEROQUIP 5600 series, HANSEN HA15000 series,DNP PAV series,Holmbury IA series, DIXON K series, Stucchi BIR series, Eaton 6500 series, Snap Tite 61 series, Voswinkel IA series,Safeway S56 series, Tomco A5600 series.
