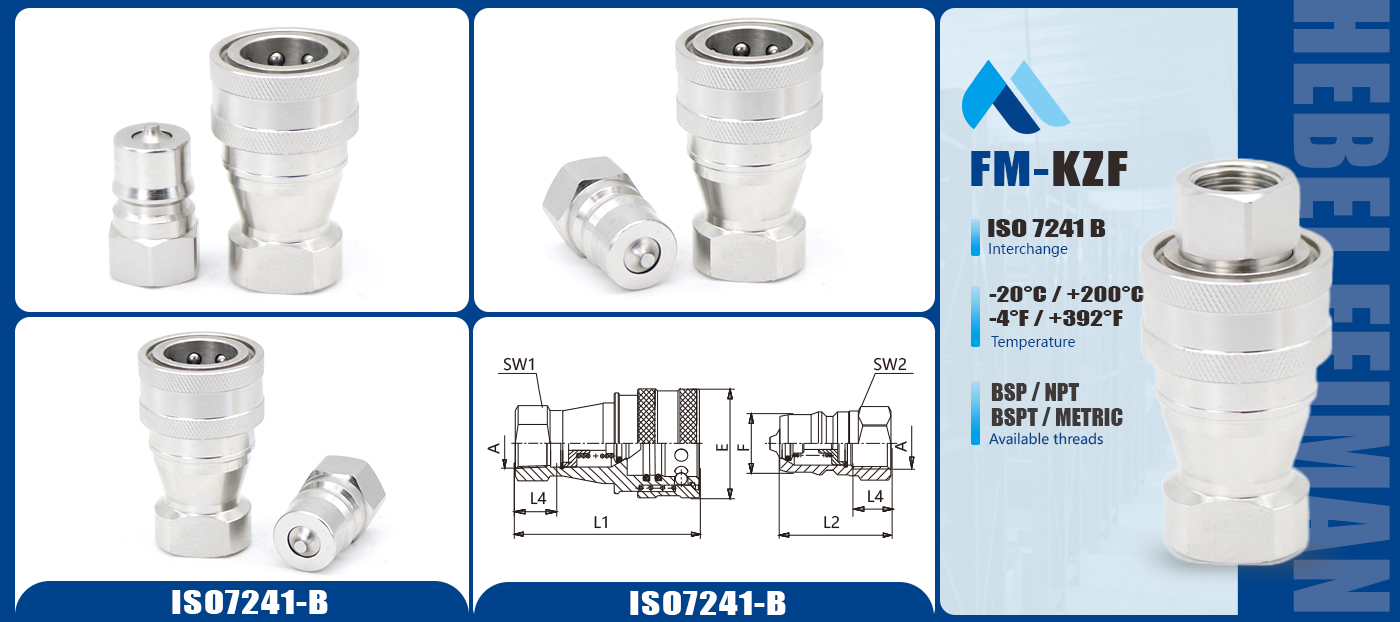

ISO7241-B quick coupling
KZF
Their robustness makes them suitable for demanding applications in the semiconductor industry, pneumatic and hydraulic hand tools, food and bottling industry, marine, shipbuilding, offshore industry, pharmaceutical industry, transportation, hydroelectric power stations, etc.
Parker 60, DNP PBV, Faster HNV, Holmbury IB
Dixon H, Stucchi IRB, Eaton HK, Aeroquip FD45
Snap Tite 72, Voswinkel IB, Safeway S10, Tomco THK, Hansen HK
Parker 60, DNP PBV, Faster HNV, Holmbury IB
Dixon H, Stucchi IRB, Eaton HK, Aeroquip FD45
Snap Tite 72, Voswinkel IB, Safeway S10, Tomco THK, Hansen HK
Quantity
Material: Stainless Steel (AISI304) Available Size: From 1/4’’-1’’
Available Thread: BSPT Operating pressure: Up to 250 bar
Features:
1. Compliant with ISO7241-1B standard, manufactured in stainless steel (AISI304)
2. A wide range of metals (brass, steel, and stainless steel) and sealing materials make them suitable for most fluids.
3. The Poppet valve allows a large flow
4. The locking ball system allows for quick connection and disconnection
5. Bidirectional flow
