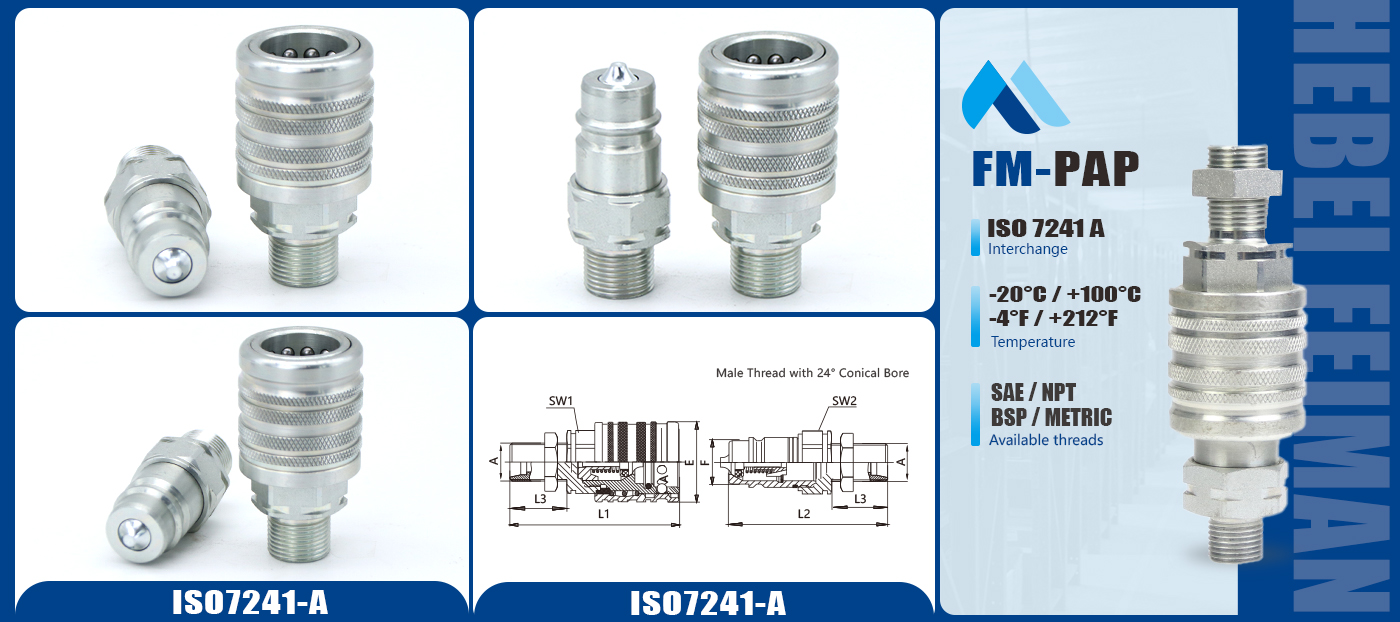

ISO7241-A Push-pull quick coupling
PAP-L
This product is widely used in various industrial applications, such as construction equipment, forest equipment, agricultural machinery, and hydraulic machines.
Parker 2000, DNP PPV/S, Faster CPV/CNV
Holmbury P, Dixon AG, Stucchi IRS, Eaton H5000
Aeroquip FD72, Snap Tite 61, Voswinkel HP, Safeway S40
Parker 2000, DNP PPV/S, Faster CPV/CNV
Holmbury P, Dixon AG, Stucchi IRS, Eaton H5000
Aeroquip FD72, Snap Tite 61, Voswinkel HP, Safeway S40
Quantity
Material:Carbon steel Available Size: From 1/4’’-1’’
Available Thread: NPT, BSP, METRIC, SAE Operating pressure: Up to 350 bar
Features:
1. According to ISO 7241-A, it is made of carbon steel with a galvanizing surface treatment.
2. Supplied in a wide range of threads: Metric(BSP), NPT threads inside,e and metric outside threads with lights or heavy type.
3. Locking ball systems allow quick connection&disconnection
4. Bidirectional flow& Pull push by one hand
