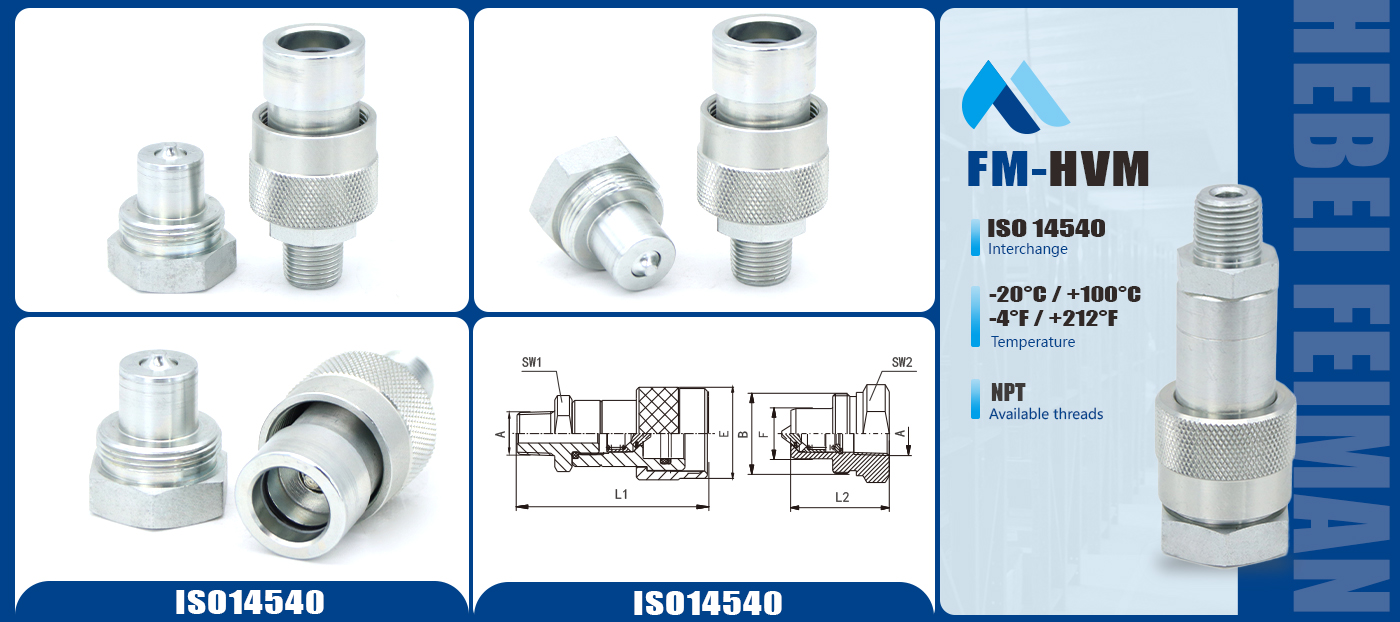

ISO14540 High Pressure quick coupling
HVM
It is designed for extremely high-pressure applications, such as portable hydraulic jacks, Torque wrenches, General industrial, construction plants, mobile equipment, demolition, and agricultural industries.
Parker 3000, DNP PVM/S, Faster PVVM/PVSM, Holmbury PSB/PSP, Dixon T, Stucchi IVHP, Snap Tite 76, Safeway S30, Tomco JCP, Enerpac C-604
Parker 3000, DNP PVM/S, Faster PVVM/PVSM, Holmbury PSB/PSP, Dixon T, Stucchi IVHP, Snap Tite 76, Safeway S30, Tomco JCP, Enerpac C-604
Quantity
Material: Carbon steel Available Size: 1/4’’, 3/8’’
Valving Style: Ball Available Thread: NPT Operating Pressure: Up to 700 bar
Features:
1.“HVM/HSM"series is a screw to connect coupling with poppet and ball style valving. Made in high-strength steel with Cr3 zinc plating and NBR sealing
2. According to the standard ISO14540
3. Self-locking connection mechanism prevents accidental disconnection caused by vibration.
4. Screw-connect couplings are designed with high pressure, up to 700 bars
