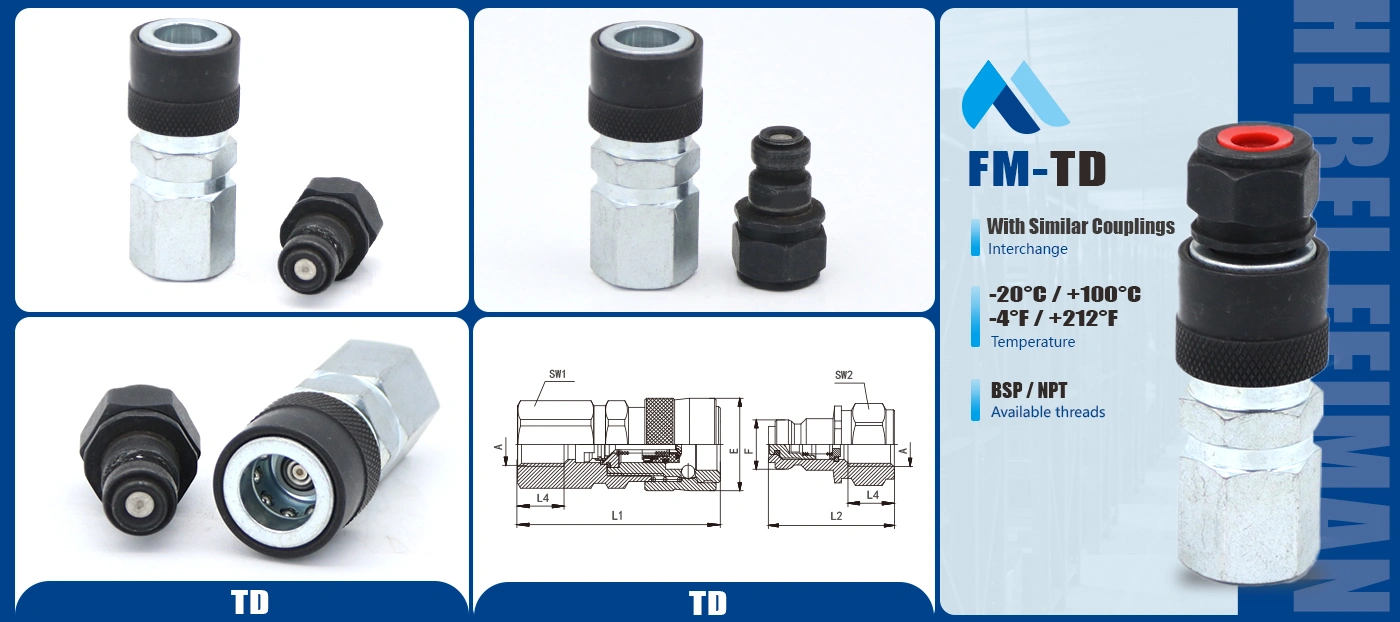

Interchangeable quick coupling
TD
The connectors are widely used in various nuclear, deep sea, wind, oil, and gas, turbines, and are widely used in products such as jack wire cutters, pipe bends, bolt tightening tools, torque wrenches, rescue equipment, and hydraulic pressure testing equipment.
Interchangeable with the following products:
Swedish Sean 116 series
Interchangeable with the following products:
Swedish Sean 116 series
Quantity
Material: Carbon Steel Available Size: 1/4’’
Valving style: Poppet Valve Available Thread: NPT, BSP, JIC, SAE Operating pressure: Up to 1500 bar
Features:
1. Lightweight design, used for rollers, bolt tightening tools, bearing removal tools, and other purposes, with extremely small external dimensions and standard drip-proof connections and disconnections. The material is hardened steel galvanized.
2. External connection: internal and external threads.
3. Technical parameters: Normal diameter is 2.5 mm, flow rate is 6.0 liters/minute, maximum working pressure is 150.0 MPa, minimum burst pressure is 300.0 MPa, and temperature range is -30℃-+100℃.
4. Maximum working pressure in the joint state: 1500 bar.
