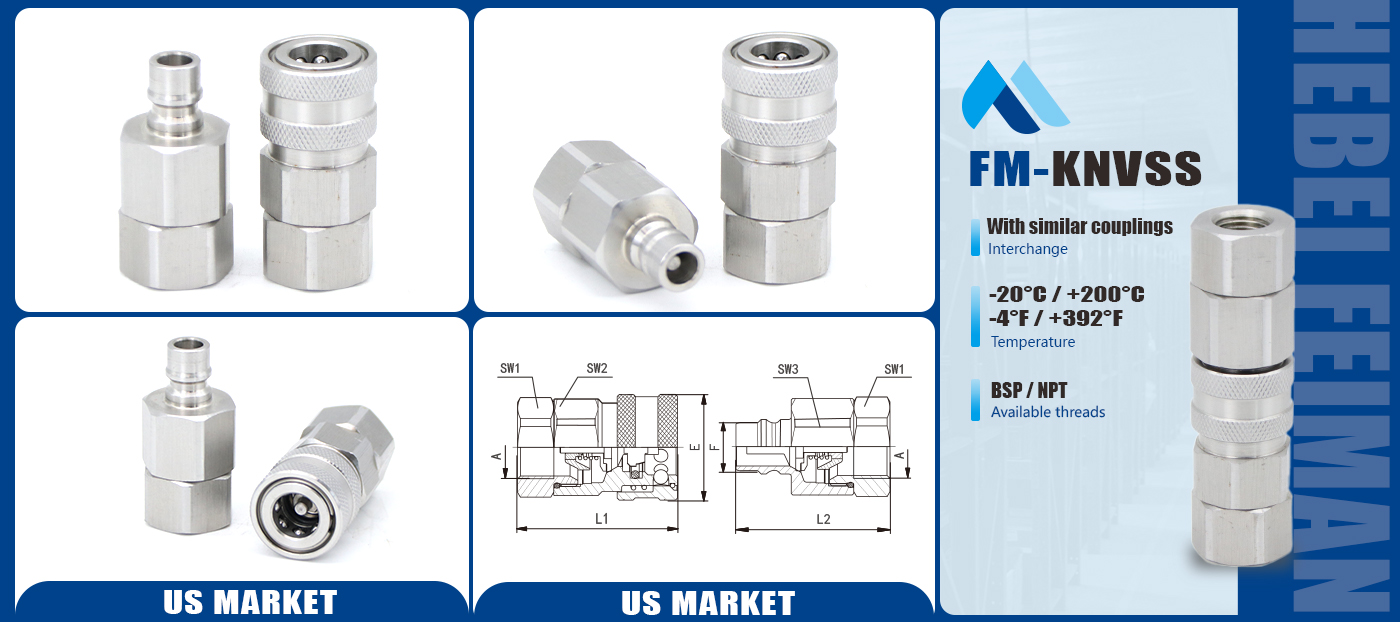

Interchangeable quick coupling
KNVSS
Material: Stainless Steel

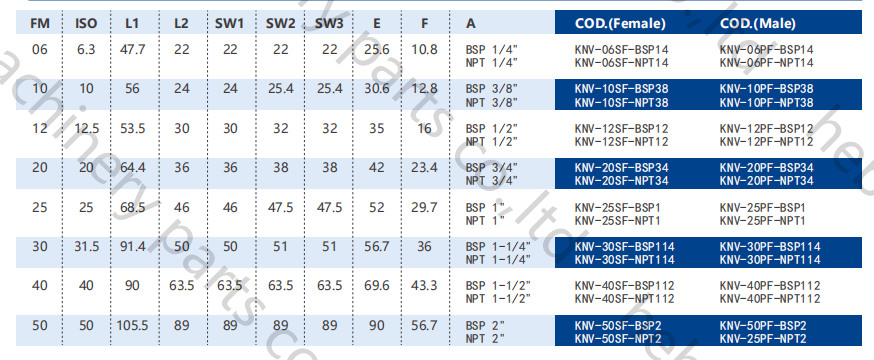

Available Size: From 1/4’’-2’’
Available Thread: NPT, BSP
Operating pressure: Up to 500 bar
Interchangeable with the following products:
Parker H/PH, Dnp PNV, Faster TNV, Holmbury HTN
Dixon V, Snap Tite H/1H
Available Size: From 1/4’’-2’’
Available Thread: NPT, BSP
Operating pressure: Up to 500 bar
Interchangeable with the following products:
Parker H/PH, Dnp PNV, Faster TNV, Holmbury HTN
Dixon V, Snap Tite H/1H
Quantity
Applications:
1. General hydraulic systems 2. Machine tools
3. Test equipment 4. Agricultural 5. Mobile hydraulics
Features:
1. Poppet style minimizes pressure drop and creates an effective seal whilst allowing high flow rates
2. Elongated nose and poppet design allow for simple connection and disconnection
3. Bidirectional flow
