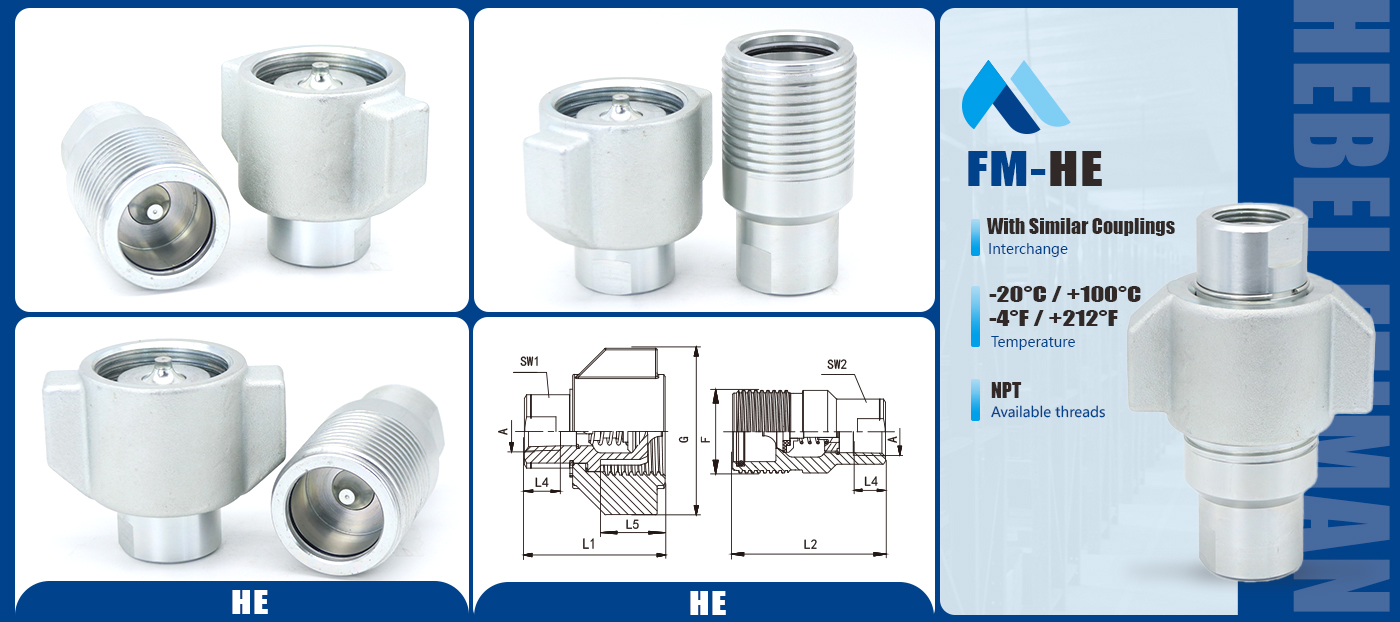

Thread connect quick coupling
HE
Application:
It is suitable for heavy-duty applications & high-pressure pulse applications.
Interchangeable with the following products:
Parker 75, Dnp VFH1, Faster OGV, Holmburyl LC
Dixon WS, Eaton FD85, Snap Tite 75, Hydraulic inc 5-TV
It is suitable for heavy-duty applications & high-pressure pulse applications.
Interchangeable with the following products:
Parker 75, Dnp VFH1, Faster OGV, Holmburyl LC
Dixon WS, Eaton FD85, Snap Tite 75, Hydraulic inc 5-TV
Quantity

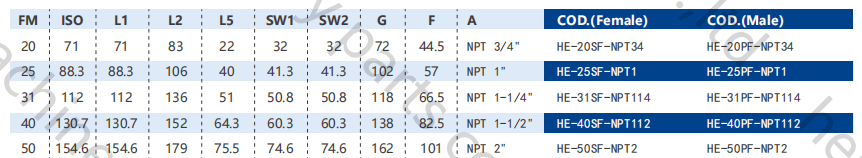

Interchange: Parker 75 /Faster OGV Material: Carbon Steel
Available Size: From 3/4’’-2’’ Available Thread: NPT Operating pressure: Up to 350 bar
Features:
1. Screw connection under residual pressure
2. Robust coupling for use in high-pressure hydraulic systems up to 350 bar
3. Threaded fasteners, loosened threads, can be connected with residual pressure.
4. New environmentally friendly galvanizing is used to provide higher rust resistance.
5. Hard heavy-duty wing nut&hexnut design allows connection by hand.
