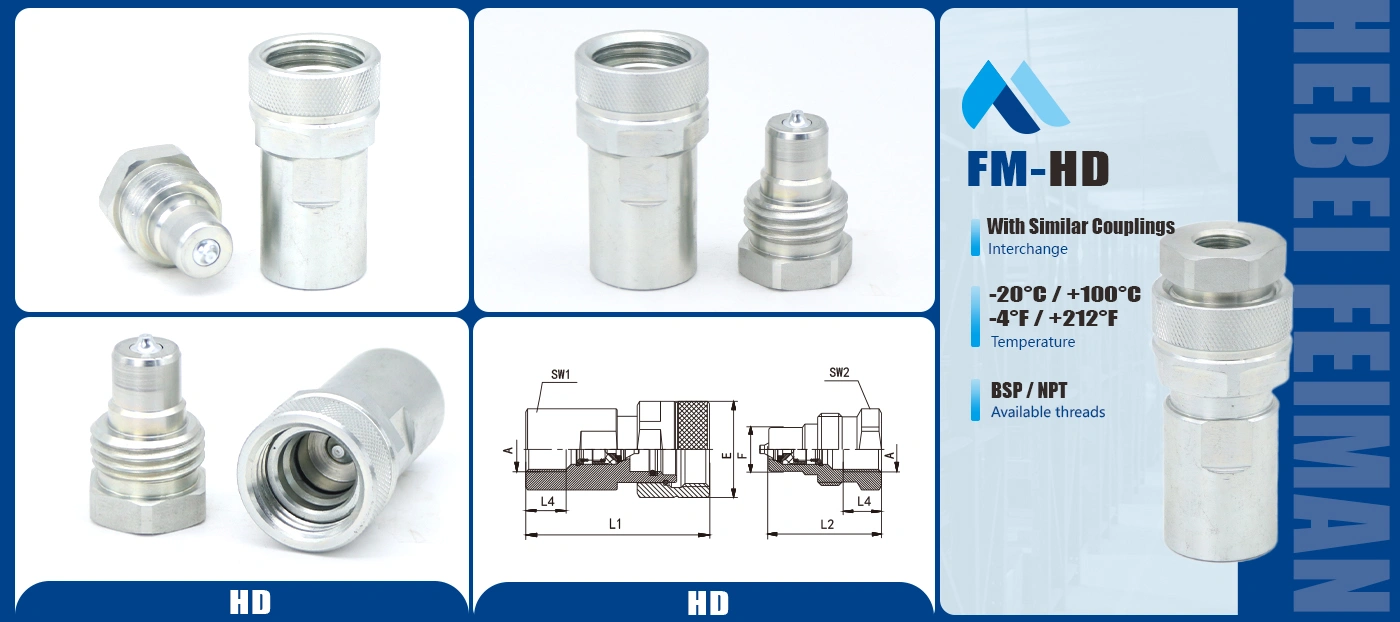

Thread connect quick coupling
HD
It is designed for heavy-duty applications involving very high pressures and severe pressure pulse conditions, such as Hydraulic jacks, Hydraulic hammers, Construction plants, mobile equipment, demolition, and agricultural industries.
Interchangeable with the following products:
Dnp VVV1, Faster VVS, Holmbury PTC
Interchangeable with the following products:
Dnp VVV1, Faster VVS, Holmbury PTC
Quantity
Interchange:Dnp VVT /Faster VA Material: Carbon Steel

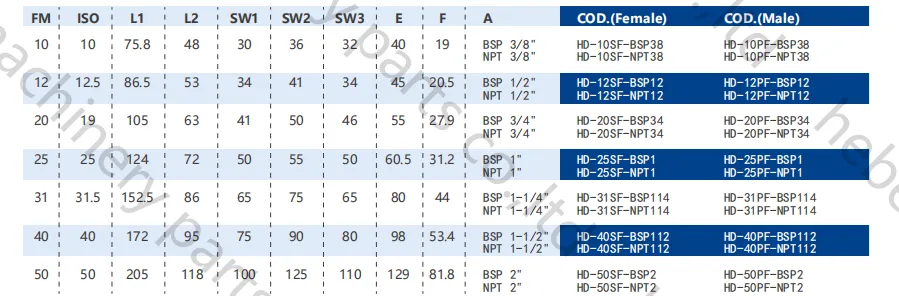

Available Size: From 3/8’’-2’’ Available Thread: NPT, BSP Operating pressure: Up to 650 bar
Features:
1. High-pressure screw couplings, Up to 650 bar.
2. Thread-to-connect with double shut-off valving
3. Self-locking connection mechanism prevents accidental disconnect caused by vibration.
4. The screw system allows the connection of either wia the male or female under pressure.
5. The design materials used give it resistance to heavy mechanical loads.
