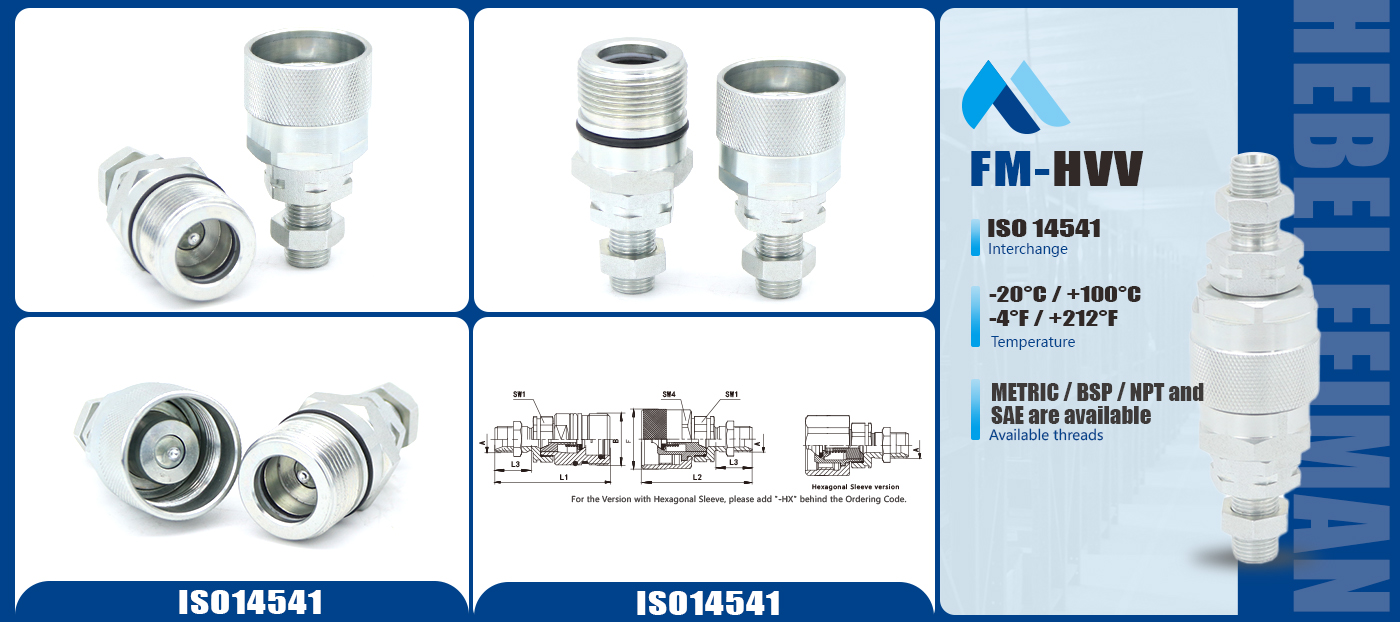

ISO14541 quick coupling
HVV-LL
This product is used in mobile engineering equipment (excavators), vehicles, hydraulic equipment, and drilling rigs.
Interchangeable with the following products:
Faster/Dixon CVV, DNP PVV3, HOLMBURY HS, STUCCHI VD
Interchangeable with the following products:
Faster/Dixon CVV, DNP PVV3, HOLMBURY HS, STUCCHI VD
Quantity

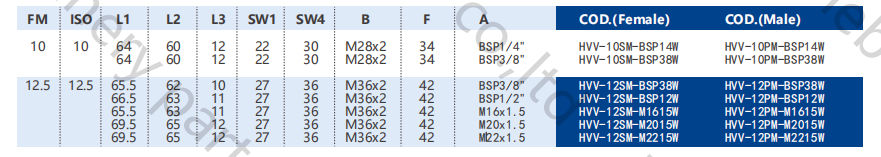

Material: Carbon steel Available Size: From 1/4’’-1’’
Available Thread: NPT, BSP, METRIC, SAE Operating pressure: Up to 450 bar
Features:
1. The new valve design can resist the impact of high-speed fluid and pulse pressure and provide higher performance.
2. Thread-to-connect with double shut-off valving.
3. Supplied in a wide range of threads: Metric (BSP), NPT threads inside, and Metric outside threads with lights or heavy type.
4. Self-locking connection mechanism prevents accidental disconnection caused by vibration.
5. The Screw system allows the connection either with a male or female under pressure.
