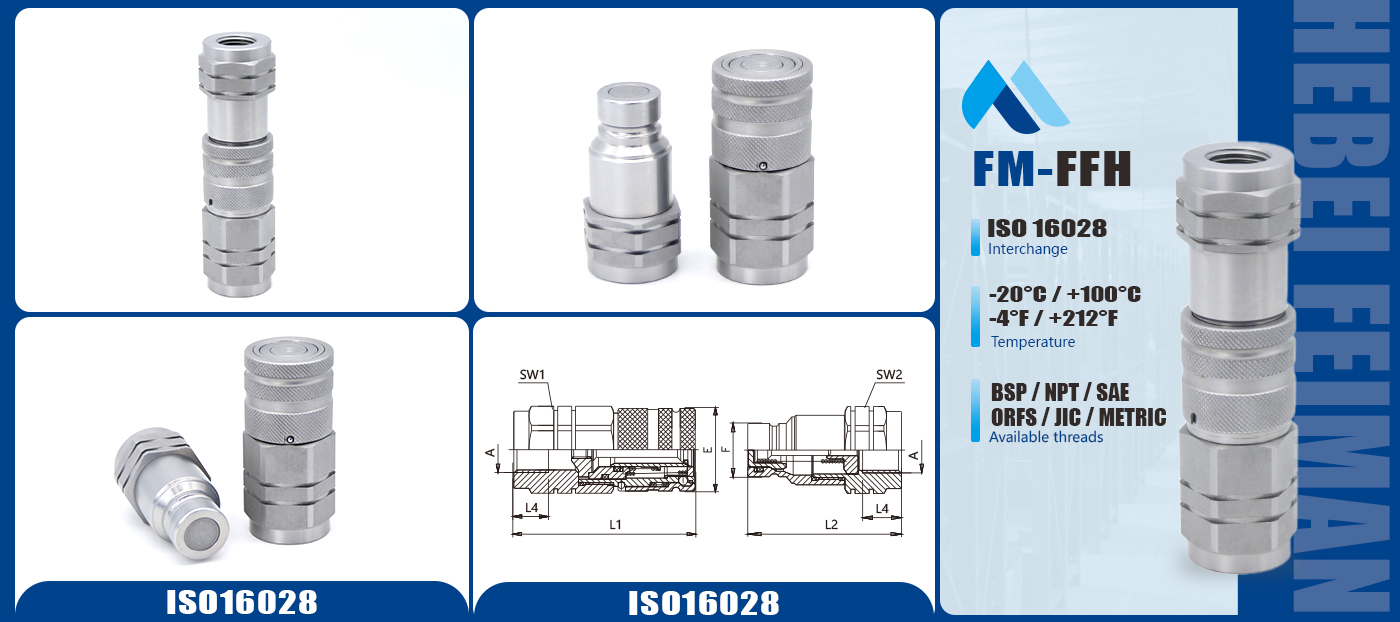

ISO16028 quick coupling
FFH
Hammer circuits, pressure pulse applications, Leak-free environments, Construction plants, mobile equipment, general industrial, nuclear, mining, and agricultural industries.
Interchangeable with the following products:
Holmbury HQ, Voswinkel FH
Interchangeable with the following products:
Holmbury HQ, Voswinkel FH
Quantity
Material: Carbon steel Available Size: From 1/4’’-2’’
Available Thread: NPT, BSP, ORFS, METRIC, SAE, JIC Operating pressure: Up to 400 bar
Features:
1. The sleeve locking mechanism is engaged by rotating the sleeve after connection. When the connector is pushed along the ground during use, the sleeve locking mechanism can prevent accidental disconnection. The design of the sleeve locking mechanism helps prevent debris from entering the internal mechanism and causing misoperation when connecting or disconnecting.
2. Key parts are induction-hardened for good durability.
3. The flush valve mechanism is used for connection and disconnection, which means that the joints between the valves can only lose a small amount of fluid when disconnecting, or only mix a small amount of air when reconnecting.
4. Comply with ISO16028 standard.
