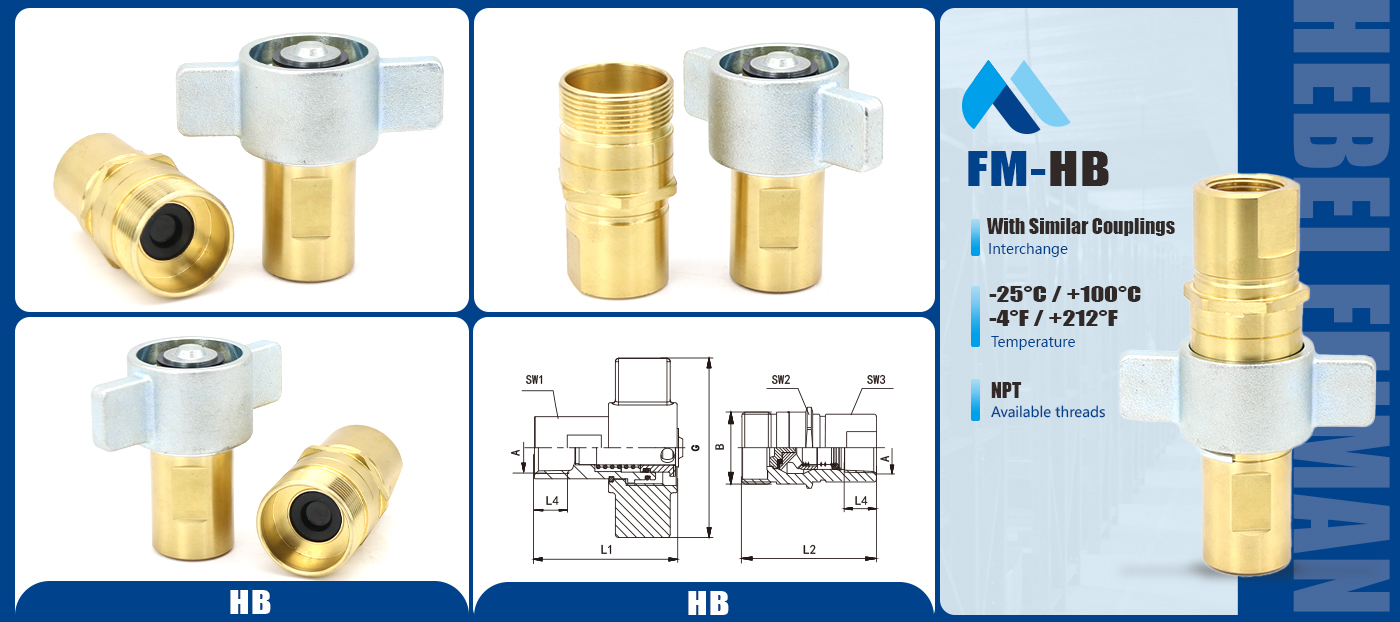

Thread connect quick coupling
HB
Interchange: Parker 6100/Faster FB
Material: Brass
Available Size: 3/4’’, 1’’, 1-1/4’’, 1-1/2’’
Available Thread: NPT
Operating pressure: Up to 200 bar
Interchangeable with the following products:
Parker 6100, Dnp VFF, Faster FB, Dixon W, Stucchi wing
Eaton 5100, Snap Tite 78, Safeway S51, Tomco A5100, Hansen 96.
Material: Brass
Available Size: 3/4’’, 1’’, 1-1/4’’, 1-1/2’’
Available Thread: NPT
Operating pressure: Up to 200 bar
Interchangeable with the following products:
Parker 6100, Dnp VFF, Faster FB, Dixon W, Stucchi wing
Eaton 5100, Snap Tite 78, Safeway S51, Tomco A5100, Hansen 96.
Quantity
Interchange: Parker 6100/Faster FB Material: Brass
Available Size: 3/4’’, 1’’, 1-1/4’’, 1-1/2’’ Available Thread: NPT Operating pressure: Up to 200 bar
Features:
1. Corrosion-resistant brass body makes this coupling compatible with a broad range of media and provides versatility.
2. Wing nut sleeve & hex nut design allow for hand-connection.
3. Flat face valves are easily wiped clean during connection.
4. The screw system allows the connection either with a male or female under pressure.
5. The flange is designed to give a positive “no-slip” bulkhead mounting to reduce downtime.
