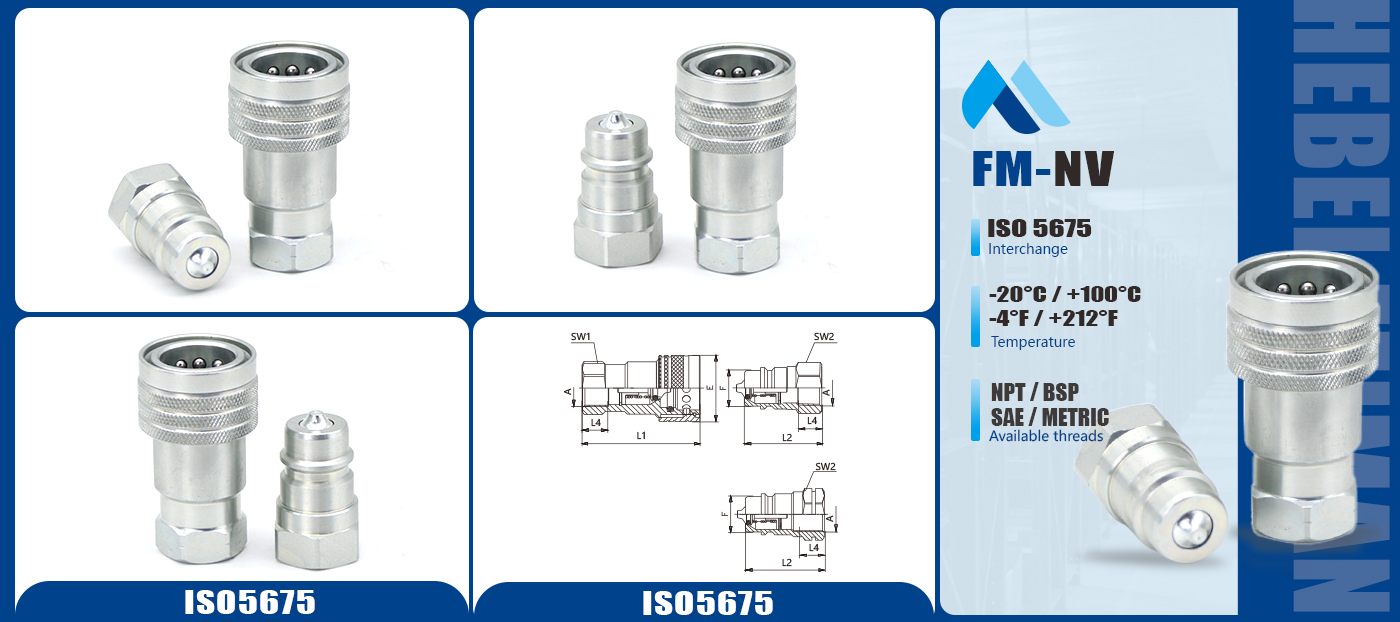

ISO5675 quick coupling
NV
Series couplings have their main application in agricultural equipment, Mobile, and construction equipment.
Interchangeable with the following products:
Parker 4000, DNP PDV/PDS, Faster NV/NS, Holmbury DIN, Dixon AG, Stucchi IRV/IR, Aeroquip FD42, Snap Tite 60/21, Safeway S20, Tomco P/C
Interchangeable with the following products:
Parker 4000, DNP PDV/PDS, Faster NV/NS, Holmbury DIN, Dixon AG, Stucchi IRV/IR, Aeroquip FD42, Snap Tite 60/21, Safeway S20, Tomco P/C
Quantity
Material: Carbon Steel Available Size: From 1/4’’-1’’
Valving style: Poppet Available Thread: NPT, BSP, METRIC, SAE Operating pressure: Up to 300 bar
Features:
1. According to the standard ISO5675
2. Available in version DN13 with poppet valve.
3. The locking ball system allows quick connection&disconnection
4. Bidirectional flow
5. NV is a poppet valve quick couplings series, manufactured in carbon steel with zinc-plated surface treatment.
6. The design is based on the better sealing of the poppet valve compared to the ball valve.
7. The size 1/2 is a part of lA series and it is interchangeable according with international standard lSO 7241-1 series"A"
