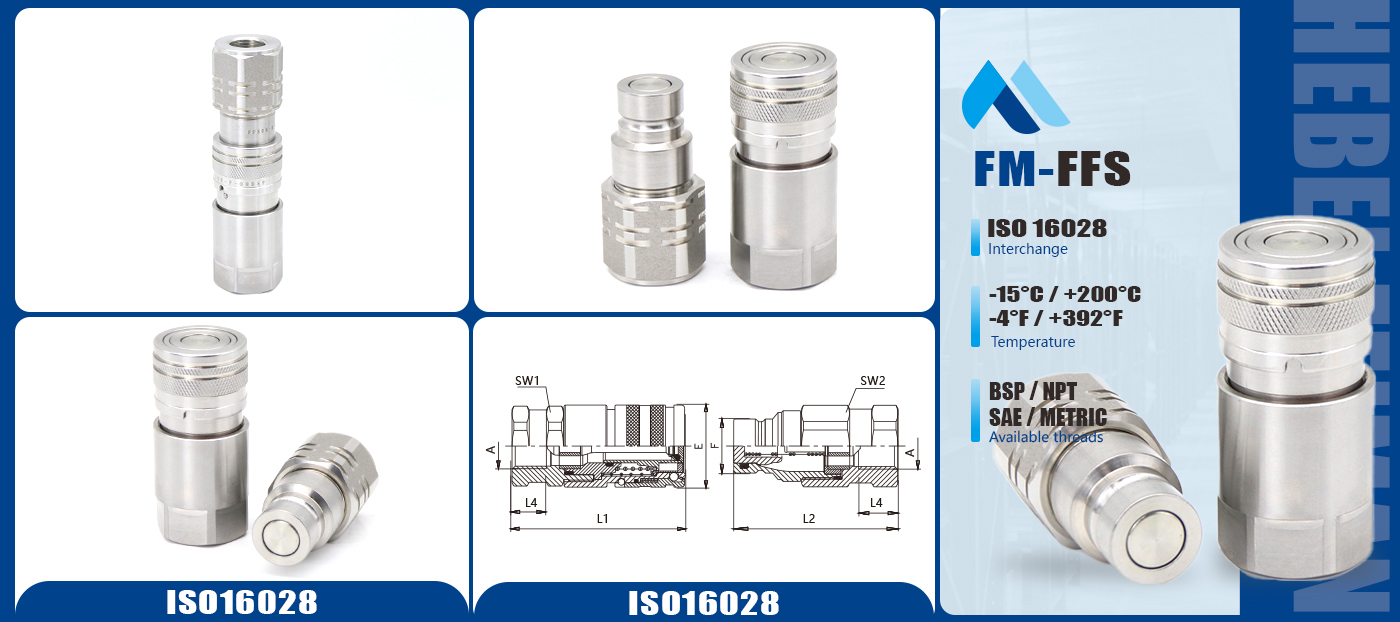

ISO16028 quick coupling
FFS
For quick change and easier cleaning, it is mainly used for construction equipment and hydraulic tools in hostile environments.
Interchangeable with the following products:
Parker FEM, Dnp PLT1/PLT4, Faster 2FFI, HOLMBURY HP, Dixon HT, Stucchi FIRG, Eaton FF, Aeroquip FD89, Snap Tite 74, Voswinkel FF, Safeway S56, Tomco FE, HANSEN, 12FFP(S)106UN
Interchangeable with the following products:
Parker FEM, Dnp PLT1/PLT4, Faster 2FFI, HOLMBURY HP, Dixon HT, Stucchi FIRG, Eaton FF, Aeroquip FD89, Snap Tite 74, Voswinkel FF, Safeway S56, Tomco FE, HANSEN, 12FFP(S)106UN
Quantity
Material: Carbon Steel (AISI 316L) Available Size: From 1/4’’-2’’
Available Thread: NPT, BSP, METRIC, SAE Operating pressure: Up to 400 bar
Features:
1. All dimensions conform to ISO 16028 standards.
2. Flat faces are easily wiped clean and allow for minimal inclusion of air contaminants during connection.
3. Easy connection disconnect by pushing the two halves together with one hand and less fluid loss.
4. The locking sleeve is provided with a safety system that ensures a perfect connection and prevents accidental disconnection.
