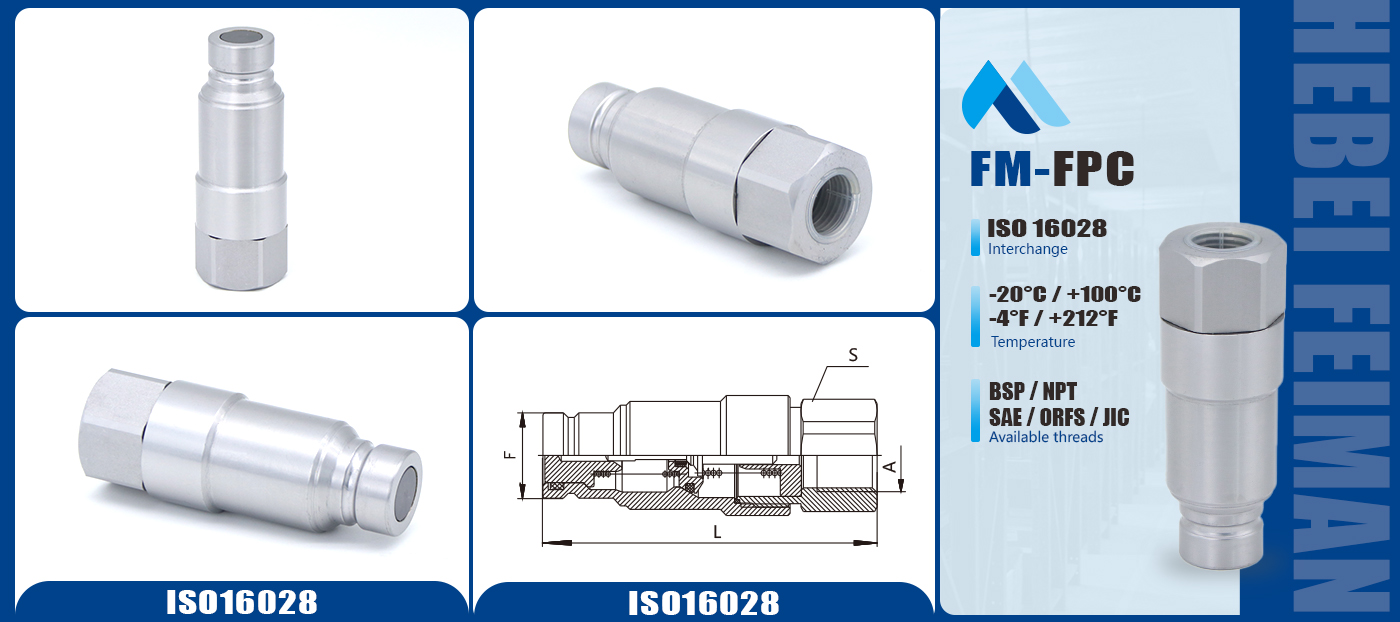

ISO16028 quick coupling
FPC
Mobile engineering equipment (excavators), vehicles, hydraulic equipment, drilling rigs
Interchangeable with the following products:
Parker FEC, DNP PLK4, Faster 3FFH, Stucci APM, HOLMBURY HCP, Eaton FFCUP
Interchangeable with the following products:
Parker FEC, DNP PLK4, Faster 3FFH, Stucci APM, HOLMBURY HCP, Eaton FFCUP
Quantity
Material:Carbon Steel Available Size: From 3/8’’-1’’
Available Thread: NPT, BSP, SAE, ORFS, JIC Operating pressure: Up to 300 bar
Features:
1. The new valve design can resist the impact of high fluid and pulse, providing higher performance
2. Flat face valves are easily wiped clean and allow for minimal inclusion of air& contaminants during connection.
3. The unique three-valve design system allows the internal residual pressure to be connected
4. The new environmentally friendly zinc-nickel alloy is used to provide higher rust resistance
5. Connect under pressure with up to 250 bars locked in the male half, Female half must have zero pressure when connecting the male half under pressure.
