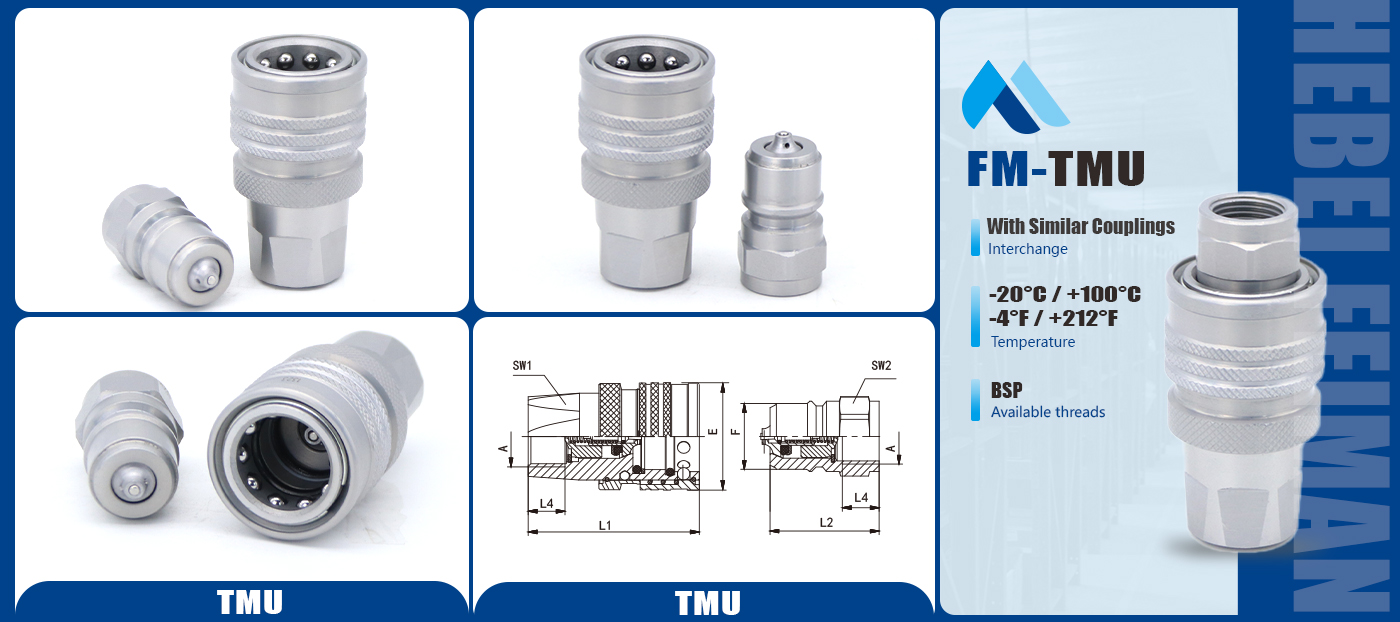

Interchangeable quick coupling
TMU
This series has broad applications including chemical industries, industrial plants, material handling, and mobile machinery.
Interchangeable with the following products:
Dnp PTV/PTK, Holmbury F, Dixon TR, TEMA T/H
Interchangeable with the following products:
Dnp PTV/PTK, Holmbury F, Dixon TR, TEMA T/H
Quantity

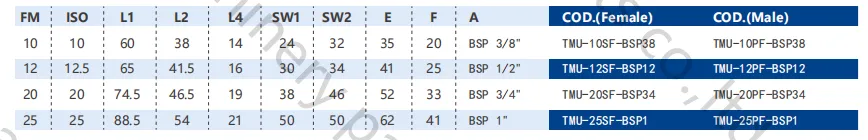

Material:Carbon Steel Available Size: 3/8’’,1/2’’, 3/4’’ 1’’
Valving style: Poppet Valve Available Thread: BSP Operating pressure: Up to 370 bar
Features:
1. High-performance design is fully interchangeable with TEMA T series problem solvers.
2. Zinc nickel-plated steel couplers have an interesting safety lock ring to prevent accidental disconnection.
3. Dual O-ring sealing system ensures optimum seal integrity for wider application.
4. This product with pressure relief poppet calve allows connection even when there is residual pressure in the hose lines.
